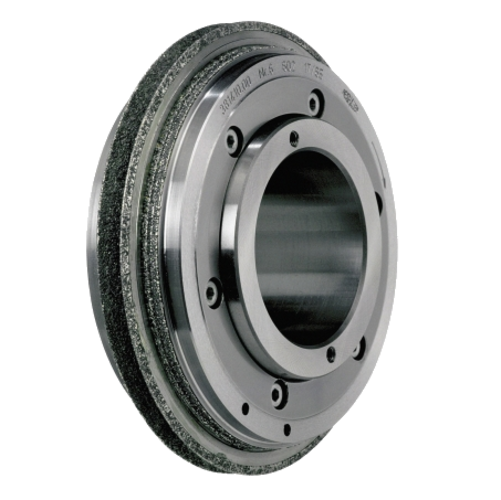

Composite Profile Roll

Highly productive tool for high volume production in the automotive industry

  • One-piece tool with integrated flank and tip dressing sections
  • Defined module, pressure angle, tooth height and profile modifications integrated into dresser
  • Simultaneous dressing of one whole threaded wheel thread
Additional technical features
  • Dresser integrated geometry ensures short setup and dressing time
  • Optional fillet radius for root grinding
  • Can be used for dressing of threaded wheels of different numbers of threads (starts)
  • Minimum module approx. 1.0 mm / maximum module approx. 5.0 mm

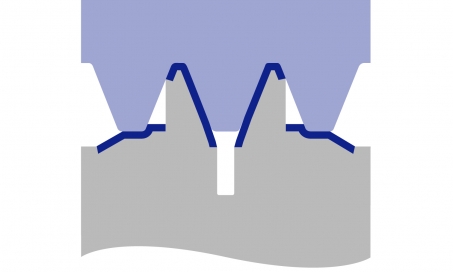

Function image

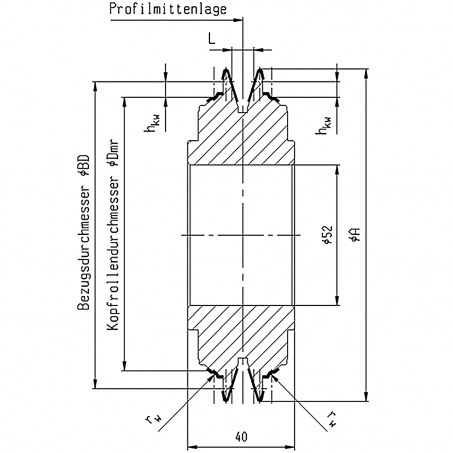

Drawing
