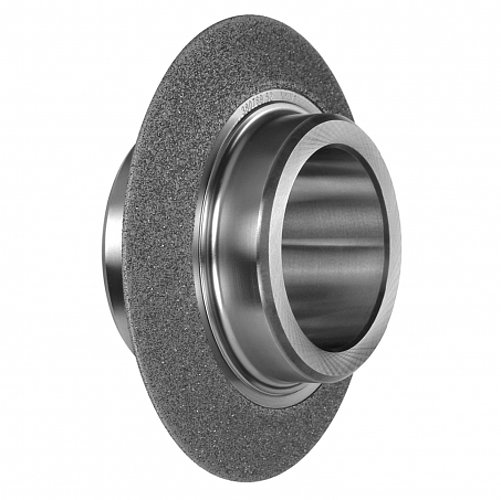

Double Taper Disk

Flexible dressing tool for small and medium volume production, single-piece tool for a range of modules and pressure angles

  • flexible regarding generation of module, pressure angle, profile height and fillet radius
  • consecutive dressing of left and right flank
Additional technical features
  • can be used on dressing devices with single spindle
  • tip dressing of the threaded wheel with dresser tip or separate OD dresser

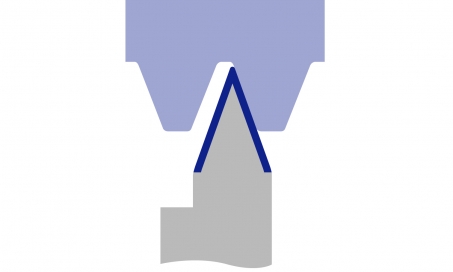

Function image

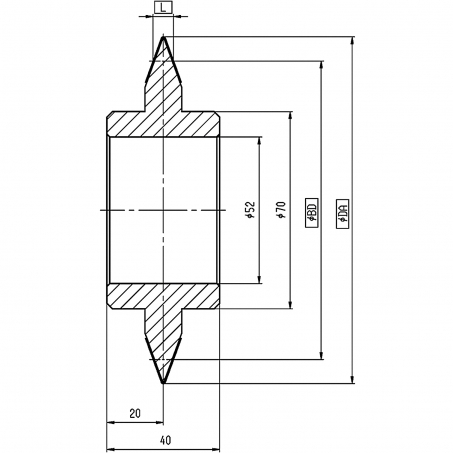

Drawing
