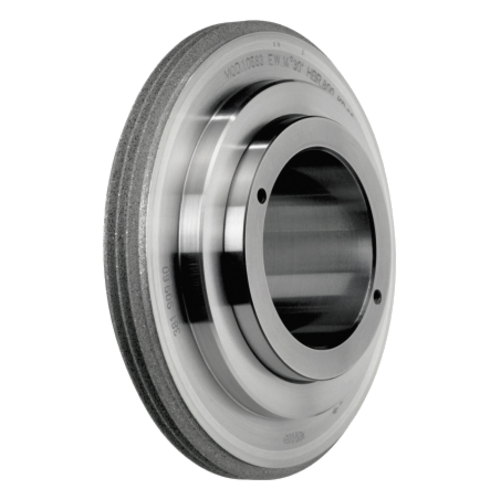

Full Profile Roll

Highly productive tool for large volume production in the automotive industry.
  • One-piece, multi-rib dressing tool in reverse electroplated bond
  • Defined module, pressure angle, tooth height and position of the profile modifications
  • Simultaneous dressing of several threaded wheel starts
  • Number of ribs equals number of threads

Additional technical features

  • Short setup and dressing time
  • Optional fillet radius for root grinding
  • Smallest radii and tightest tolerances

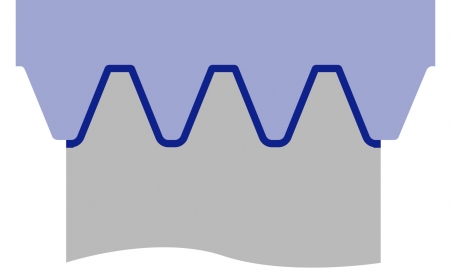

Function image

Function image

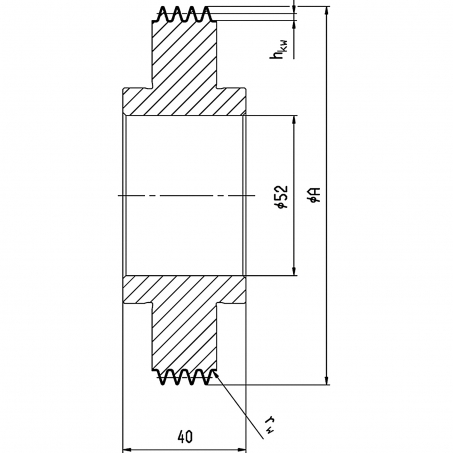

Drawing

Drawing
