Continuous Generating Gear Grinding Machine RZ 160 4.0

The Automotive Gear Grinding Machine

The machine that can handle all the gears that are used in automotive transmissions.

The RZ 160 4.0 gear grinder’s productivity sets the industrial standard for the production of automotive gears. Its working range diameter of up to 160 mm and its module range of 0.5 to 4 covers all gears, disk-type or shaft-type parts that are used in automotive transmissions.

Productivity and Flexibility

Apart from its main field of application – high volume production of automotive gears – this machine is also suitable for flexible usage such as a single prototype gear or small lot size production, for example. This is exemplified by the design features of an additional grinding head for profile grinding, line dressing or the option of „onboard gear measuring”.

Constant High Performance

The RZ 160’s overriding design principle is based on its dual spindle technology, with all axes movements and routines being uncompromisingly executed in parallel, the short reaction times of all spindles, and the high cutting speeds.

The optional swival-type dressing axis allows applying all of Reishauer’s dressing technologies such as line dressing, dressing with multi-rip full profile rolls and topological dressing.

Short set-up times highlight the flexibility of the machine. Apart from disk-type workpieces, this machine equally handles shaft-type workpieces with its optional tailstock. The operating philosophy is identical to that of the other two types machines of the RZx60 4.0 family. As a result, operators that are familiar with the RZ 60 4.0 and RZ 260 4.0 can immediately, and productively, operate the RZ 160 4.0 machine.

Due to its compact design, and the fact that it comes fully equipped, it can be easily integrated into existing production lines.

Last but not least: hundreds of RZ 160 4.0 machines that unflaggingly generate income for our customers are the best proof of the performance level of this machine.

Working range
Given values that may differ can be verified upon request.
Workpiece diameter
0 – 162 mm
Module range
0.5 – 4.0 mm
Swivel angle (grinding head)
+/- 48°
Grinding stroke (max.)
180 mm
Shaft length (max.)
490 mm
Workpiece rpm (max.)
3000 min⁻¹
Workpiece weight (incl. workholding)
30 kg
Operating speed (max.)
100 m/s
Grinding wheel outside diameter (max.)
275 mm
Grinding wheel width
125 / 160 mm
Diameter of dressing tools
123 / 140 mm
Dimensions (width x depth x height)
2880 x 2310 x 2920 mm
Machine weight (incl. W-axis)
9600 kg
Hardware Options (Extract)
Additional workspindle (C1- & C2-Axis)
Swivable dressing unit (C4-axis)
CNC tailstocks (W1- & W2-axis)
Profile grinding head for small grinding wheels

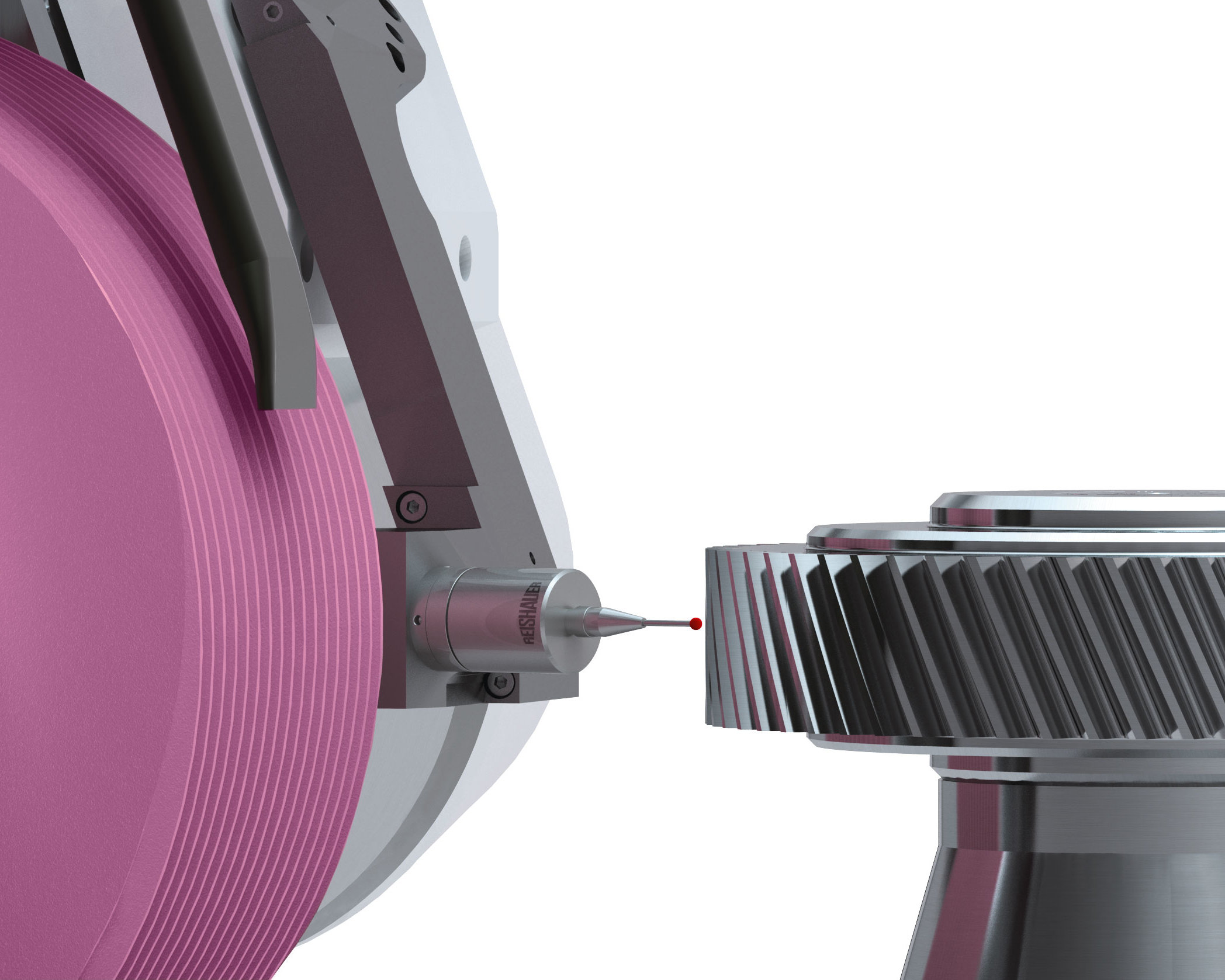

Onboard gear measuring
Technology Options (Extract)
Polish grinding
Topological grinding (Twist Control Grinding)
Line dressing
Grinding of tapered gears (beveloid gears)
Grinding of non-involute gears
Profile grinding
Integrated oil spinning off
Reishauer ECO-Mode
Siemens Sinumerik 840D Solution Line
Reishauer Precision Drive
Reishauer operating software
Part Loader System
Reishauer’s own automation concept is an integral part of its performance portfolio. This part loading automation keeps pace with the machines fast cycle times, productivity and availability. Automation and machine are in perfect synch as they share their place of...
